XMP Metadata

Schemas

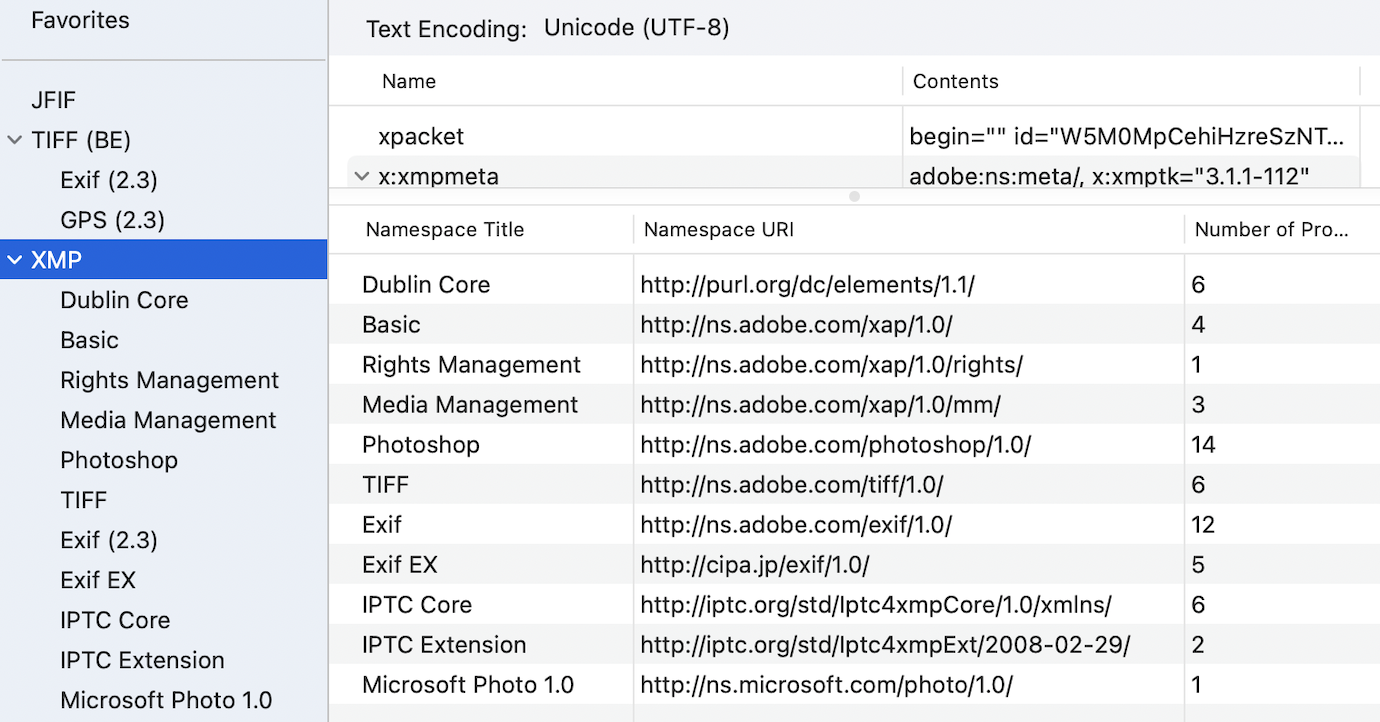

XMP (Extensible Metadata Platform) is an XML (Extensible Markup Language) based format. XMP has one or more schemas. A schema consists of properties.

The following are supported schemas:

Adding a Schema

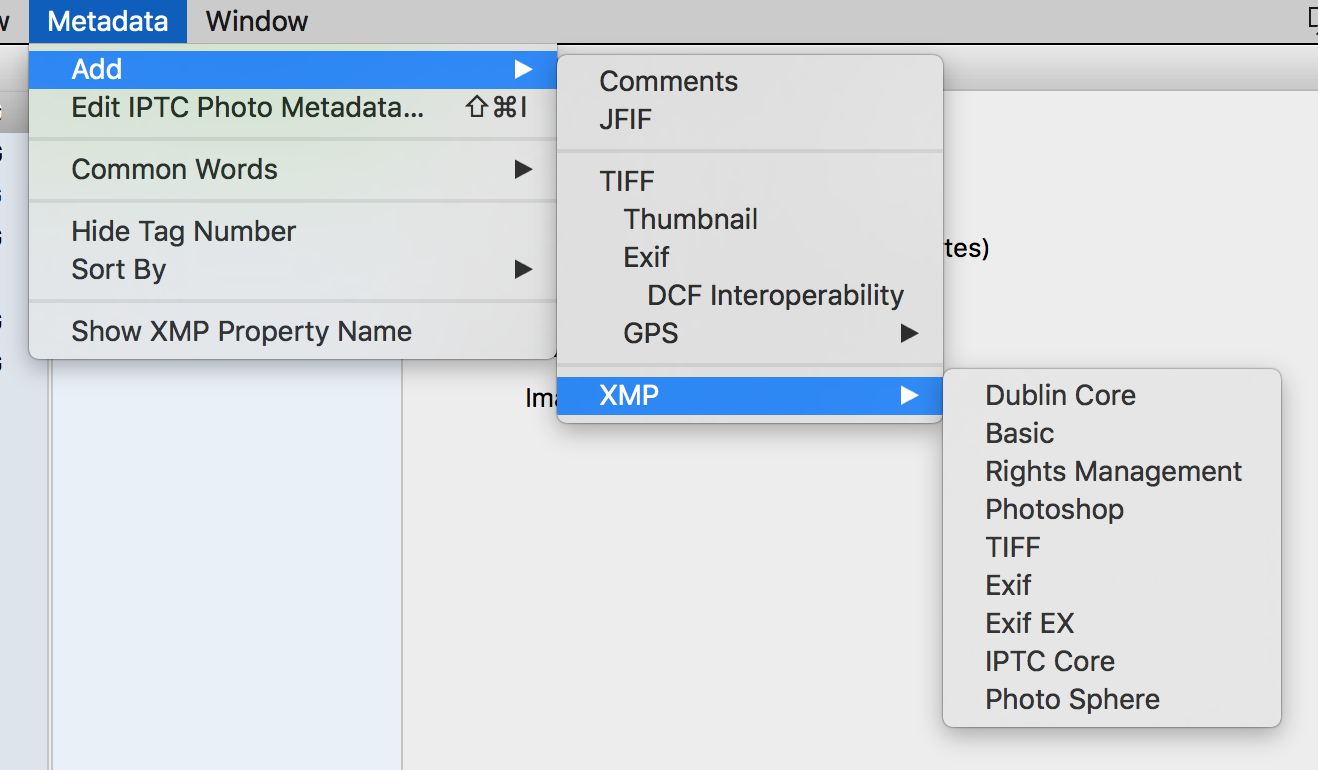

Select image file(s) you want to add, and then choose Metadata > Add > "schema".

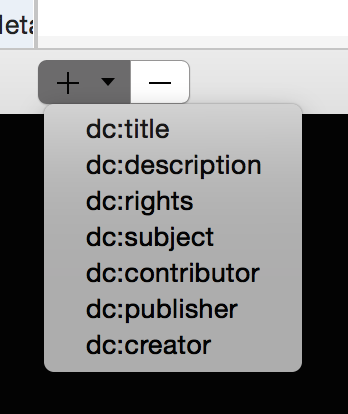

Adding a Property

Select a schema you want to add a property in the Metadata Type List, then click "+" pop-up button at the bottom of the main window, then choose a property.

Types of Property
Editing Property

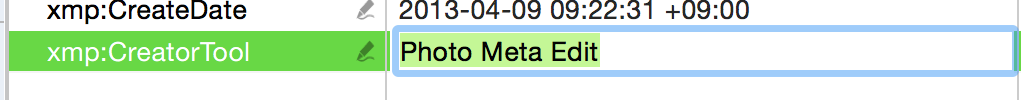

Simple Type

Click button to edit metadata.

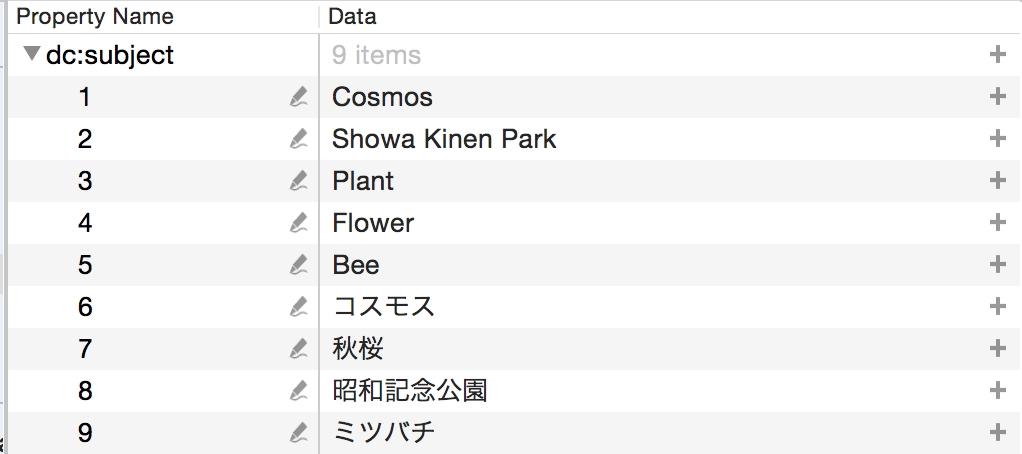

Array of the Simple Type

Click button to edit metadata.
Click button to add new element.

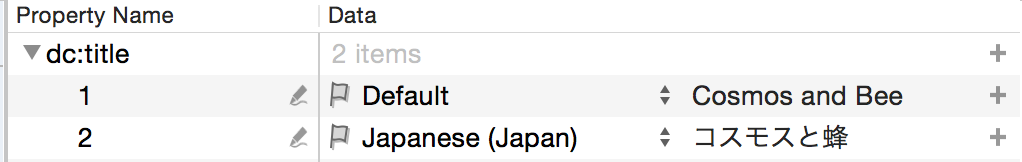

Array of the Language Alternatives Simple Type

Click the flag button to change language of the metadata element. The language of the first element should be Default.
Click button to add new element.

You can customize the list of languages in the Preferences.

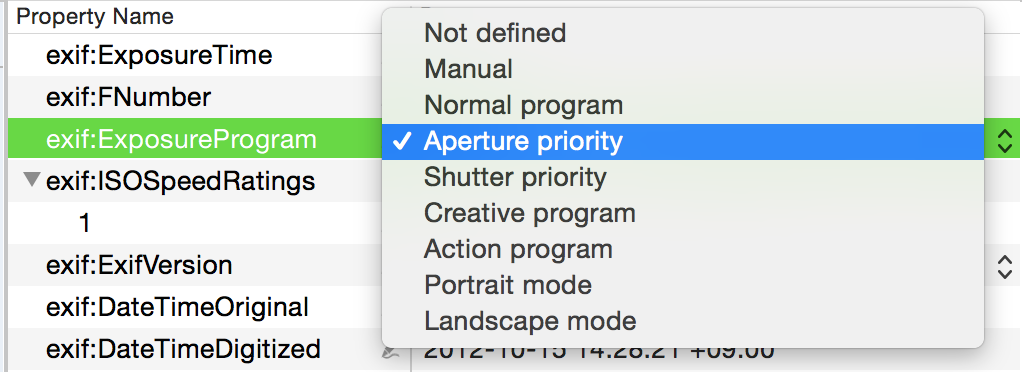

Choice Type

Choose a metadata element from pre-defined elements.

Array of the Choice Type

Choose a metadata element from pre-defined elements.
Click button to add new element.

IPTC Photo Metadata

IPTC Photo Metadata in XMP are composed of properties of different schemas.
(e.g. Headline from Photoshop, Title from Dublin Core、Creator's Contact Info from IPTC Core)

Photo Meta Edit shows/edits IPTC Photo Metadata embedded in XMP.

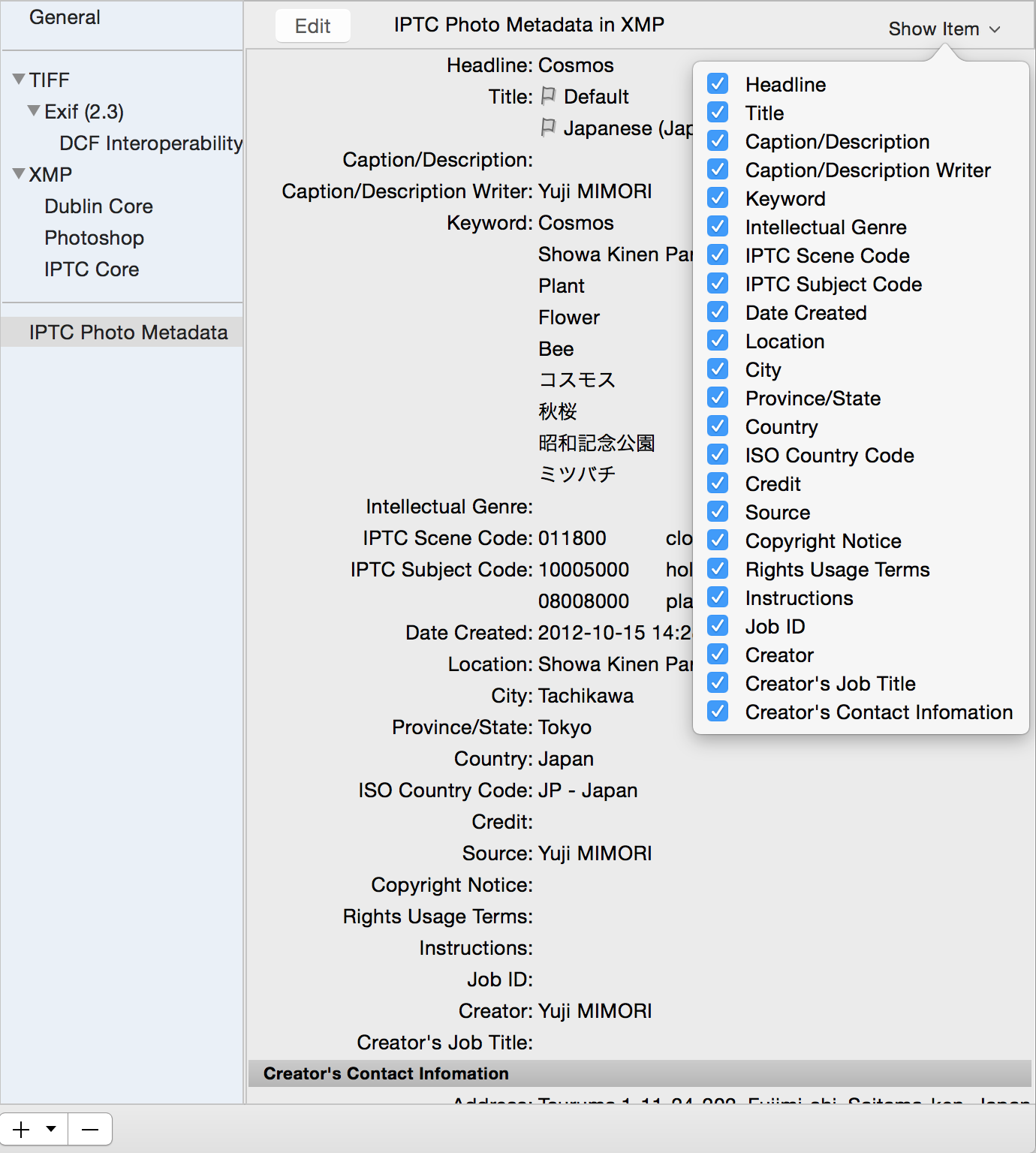

The Listing of IPTC Photo Metadata items

Select the IPTC Photo Metadata in the Metadata Type List, and then you can see the IPTC Photo Metadata items. You can drag-and-drop an item in the order you want.
The Creator's Contact Infomation cannot move from the bottom of the list.

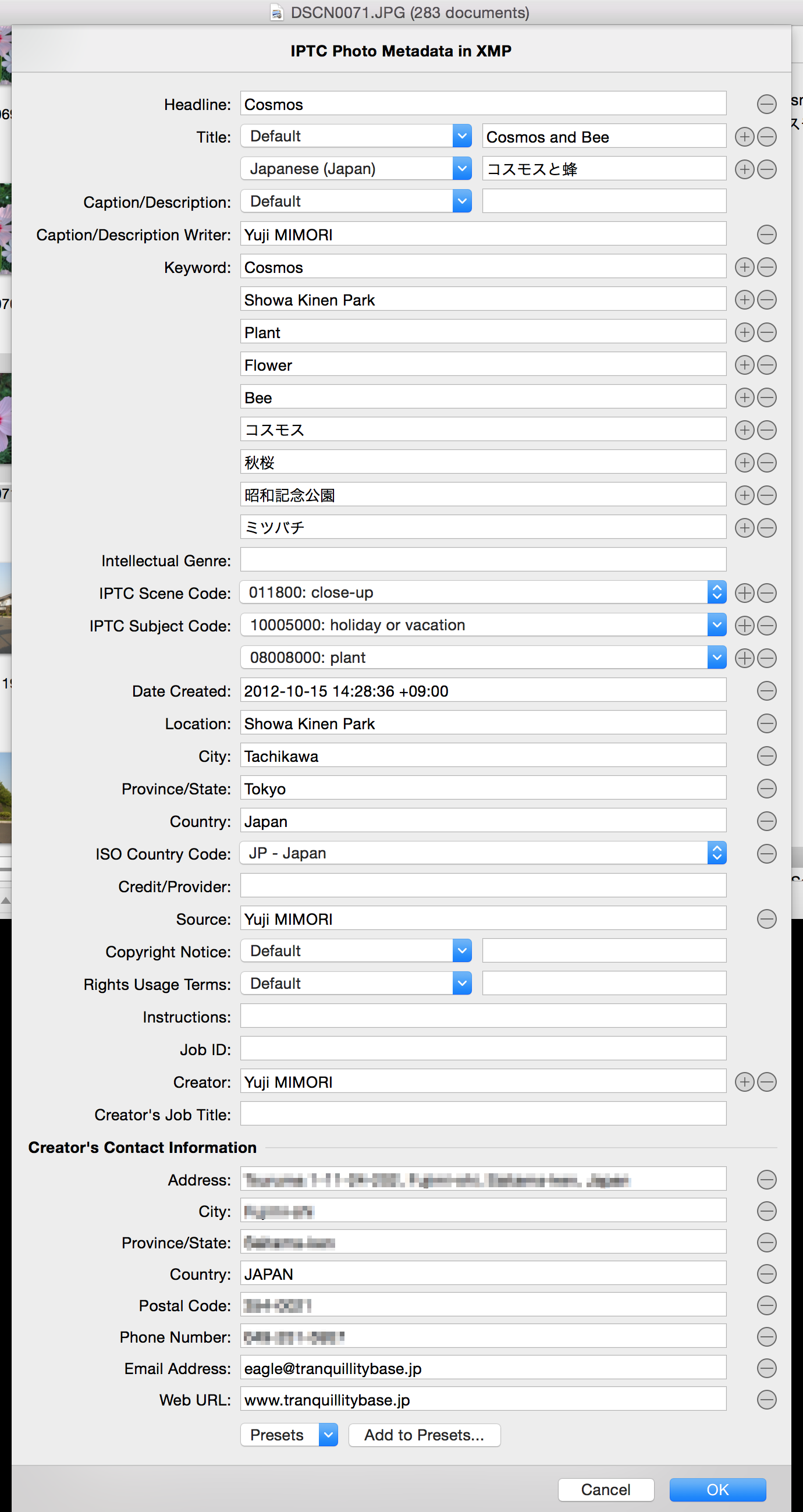

Adding, Editing

If you add/edit the IPTC Photo Metadata items by using the IPTC Photo Metadata editing sheet, you don't have to alternate between schemas.

Click the Edit button, and then the sheet will be appeared. If the IPTC Photo Metadata is absent in the Metadata Type List, choose Metadata > Edit IPTC Photo Metadata..., and then the sheet will be appeared.

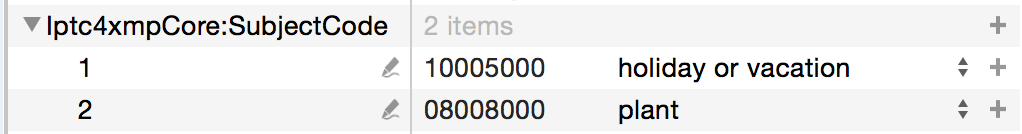

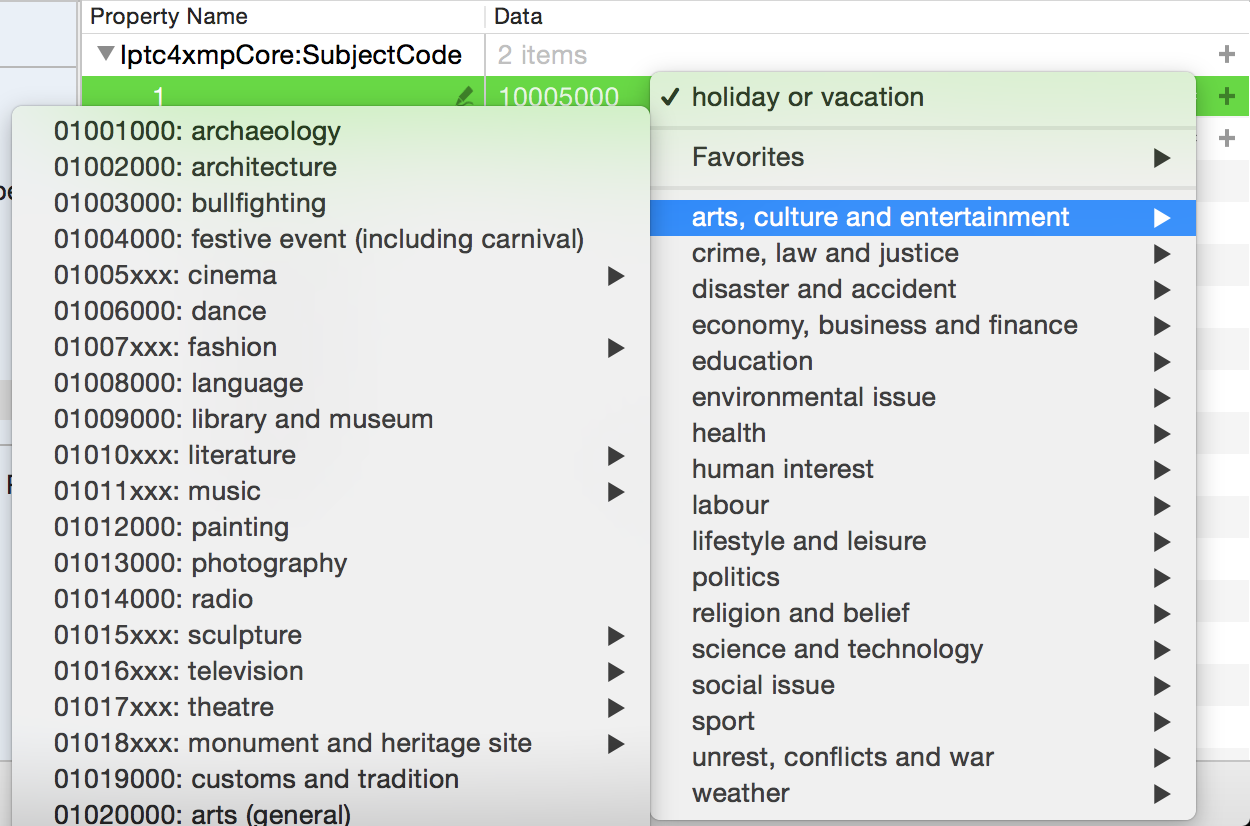

IPTC Subject Code

Over 1300 Subject Codes are defined. Definitions of IPTC Subject Code

IPTC Scene

Definitions of IPTC Scene

List of Properties
Dublin Core
Namespace URIhttp://purl.org/dc/elements/1.1/
Property Title Editable Notes
dc:contributorContributor
dc:coverageCoverage

dc:creatorCreator
dc:dateDate

dc:descriptionCaption/Description
dc:formatFormat

dc:identifierIdentifier

dc:languageLanguage

dc:publisherPublisher
dc:relationRelation

dc:rightsCopyright
dc:sourceSource

dc:subjectKeyword
dc:titleTitle
dc:typeType

Dublin Core
Namespace URIhttp://purl.org/dc/elements/1.1/
Property Editable Notes
dc:contributor
dc:coverage

dc:creator
dc:date

dc:description
dc:format

dc:identifier

dc:language

dc:publisher
dc:relation

dc:rights (Copyright)
dc:source

dc:subject (Keyword)
dc:title
dc:type

Basic
Namespace URIhttp://ns.adobe.com/xap/1.0/
Property Title Editable Notes
xmp:AdvisoryAdvisory

xmp:BaseURLBase URL

xmp:CreateDateCreate Date
xmp:CreatorToolCreator Tool
xmp:IdentifierIdentifier

xmp:LabelLabel
xmp:MetadataDateMetadata Date
xmp:ModifyDateModify Date
xmp:NicknameNickname
xmp:RatingRating
xmp:ThumbnailsThumbnails

Basic
Namespace URIhttp://ns.adobe.com/xap/1.0/
Property Editable Notes
xmp:Advisory

xmp:BaseURL

xmp:CreateDate
xmp:CreatorTool
xmp:Identifier

xmp:Label
xmp:MetadataDate
xmp:ModifyDate
xmp:Nickname
xmp:Rating
xmp:Thumbnails

Rights Management
Namespace URIhttp://ns.adobe.com/xap/1.0/rights/
Property Title Editable Notes
xmpRights:CertificateCertificateURL
xmpRights:MarkedMarked
xmpRights:OwnerOwner
xmpRights:UsageTermsUsage Terms
xmpRights:WebStatementWeb StatementURL
Rights Management
Namespace URIhttp://ns.adobe.com/xap/1.0/rights/
Property Editable Notes
xmpRights:CertificateURL
xmpRights:Marked
xmpRights:Owner
xmpRights:UsageTerms
xmpRights:WebStatementURL
Photoshop
Namespace URIhttp://ns.adobe.com/photoshop/1.0/
Property Title Editable Notes
photoshop:AuthorsPositionAuthors Position
photoshop:CaptionWriterCaption Writer
photoshop:CategoryCategoryLimited to 3 ASCII characters
photoshop:CityCity
photoshop:ColorModeColor Mode

photoshop:CountryCountry
photoshop:CreditCredit
photoshop:DateCreatedDate Created
photoshop:
DocumentAncestors
Document Ancestors

photoshop:HeadlineHeadline
photoshop:HistoryHistory

photoshop:ICCProfileICC Profile

photoshop:InstructionsInstructions
photoshop:SourceSource
photoshop:StateProvince/State
photoshop:
SupplementalCategories
Supplemental Categories
photoshop:TextLayersText Layers

photoshop:
TransmissionReference
Transmission Reference
photoshop:UrgencyUrgency
Photoshop
Namespace URIhttp://ns.adobe.com/photoshop/1.0/
Property Editable Notes
photoshop:AuthorsPosition
photoshop:CaptionWriter
photoshop:CategoryLimited to 3 ASCII characters
photoshop:City
photoshop:ColorMode

photoshop:Country
photoshop:Credit
photoshop:DateCreated
photoshop:
DocumentAncestors


photoshop:Headline
photoshop:History

photoshop:ICCProfile

photoshop:Instructions
photoshop:Source
photoshop:State
photoshop:
SupplementalCategories

photoshop:TextLayers

photoshop:
TransmissionReference

photoshop:Urgency
TIFF
Namespace URIhttp://ns.adobe.com/tiff/1.0/
Property Title Editable Notes
tiff:ArtistArtist
Use dc:creator
tiff:BitsPerSampleBits Per Sample

tiff:CompressionCompression

tiff:CopyrightCopyright
Use dc:rights
tiff:DateTimeDate Time
Use xmp:ModifyDate
tiff:ImageDescriptionImage Description
Use dc:description
tiff:ImageLengthImage Height

tiff:ImageWidthImage Width

tiff:MakeMake
tiff:ModelModel
tiff:OrientationOrientation
tiff:
PhotometricInterpretation
Photometric Interpretation

tiff:PlanarConfigurationPlanar Configuration

tiff:
PrimaryChromaticities
Primary Chromaticities

tiff:ReferenceBlackWhiteReference BlackWhite

tiff:ResolutionUnitResolution Unit
tiff:SamplesPerPixelSamples Per Pixel

tiff:SoftwareSoftware
Use xmp:CreatorTool
tiff:TransferFunctionTransfer Function

tiff:WhitePointWhite Point

tiff:XResolutionX Resolution
tiff:YResolutionY Resolution
tiff:YCbCrCoefficientsYCbCr Coefficients

tiff:YCbCrPositioningYCbCr Positioning

tiff:YCbCrSubSamplingYCbCr Sub Sampling

TIFF
Namespace URIhttp://ns.adobe.com/tiff/1.0/
Property Editable Notes
tiff:Artist
Use dc:creator
tiff:BitsPerSample

tiff:Compression

tiff:Copyright
Use dc:rights
tiff:DateTime
Use xmp:ModifyDate
tiff:ImageDescription
Use dc:description
tiff:ImageLength
(Image Height)


tiff:ImageWidth

tiff:Make
tiff:Model
tiff:Orientation
tiff:
PhotometricInterpretation


tiff:PlanarConfiguration

tiff:
PrimaryChromaticities


tiff:ReferenceBlackWhite

tiff:ResolutionUnit
tiff:SamplesPerPixel

tiff:Software
Use xmp:CreatorTool
tiff:TransferFunction

tiff:WhitePoint

tiff:XResolution
tiff:YResolution
tiff:YCbCrCoefficients

tiff:YCbCrPositioning

tiff:YCbCrSubSampling

Exif
Namespace URIhttp://ns.adobe.com/exif/1.0/
Property Title Editable Notes
exif:ExposureTimeExposure Time
exif:FNumberF Number
exif:ExposureProgramExposure Program
exif:SpectralSensitivitySpectral Sensitivity

exif:ISOSpeedRatingsISO Speed Ratings
exif:OECFOptoelectric Conversion Factor

exif:ExifVersionExif VersionCannot change to previous version
exif:DateTimeOriginalDate Time Original
exif:DateTimeDigitizedDate Time DigitizedUse xmp:CreateDate.
Cannot add this property.
exif:
ComponentsConfiguration
Components Configuration

exif:
CompressedBitsPerPixel
Compressed Bits Per Pixel
exif:ShutterSpeedValueShutter SpeedValue
exif:ApertureValueAperture Value
exif:BrightnessValueBrightness Value
exif:ExposureBiasValueExposure Bias Value
exif:MaxApertureValueMax Aperture Value
exif:SubjectDistanceSubject Distance (meter)Unknown: 0/1
Infinity: 4294967295/1
exif:MeteringModeMetering Mode
exif:LightSourceLight Source
exif:FlashFlash

exif:FunctionFunction

exif:FiredFired

exif:ModeMode

exif:RedEyeModeRed Eye Mode

exif:ReturnReturn

exif:FocalLengthFocal Length
exif:SubjectAreaSubject Area

exif:UserCommentUser Comment
exif:FlashpixVersionFlashpix Version

exif:ColorSpaceColor Space
exif:PixelXDimensionPixel X Dimension
exif:PixelYDimensionPixel Y Dimension
exif:RelatedSoundFileRelated Sound File

exif:FlashEnergyFlash Energy
exif:
SpatialFrequencyRespones
Spatial Frequency Respones

exif:FocalPlaneXResolutionFocal Plane X Resolution
exif:FocalPlaneYResolutionFocal Plane Y Resolution
exif:
FocalPlaneResolutionUnit
Focal Plane Resolution Unit
exif:SubjectLocationSubject Location

exif:ExposureIndexExposure Index
exif:SensingMethodSensing Method
exif:FileSourceFile Source
exif:SceneTypeScene Type
exif:CFAPatternCFA Pattern

exif:CustomRenderedCustom Rendered
exif:ExposureModeExposure Mode
exif:WhiteBalanceWhite Balance
exif:DigitalZoomRatioDigital ZoomRatio
exif:
FocalLengthIn35mmFilm
Focal Length In 35mm Film
exif:SceneCaptureTypeScene Capture Type
exif:GainControlGain Control
exif:ContrastContrast
exif:SaturationSaturation
exif:SharpnessSharpness
exif:
DeviceSettingDescription
Device Setting Description

exif:SubjectDistanceRangeSubject DistanceRange
exif:ImageUniqueIDImage Unique ID
exif:GPSVersionIDGPS VersionCannot change to previous version
exif:GPSLatitudeGPS Latitude
exif:GPSLongitudeGPS Longitude
exif:GPSAltitudeRefGPS Altitude Reference
exif:GPSAltitudeGPS Altitude
exif:GPSTimeStampGPS Time Stamp
exif:GPSSatellitesGPS Satellites
exif:GPSStatusGPS Status
exif:GPSMeasureModeGPS Measure Mode
exif:GPSDOPGPS Degree of Precision
exif:GPSSpeedRefGPS Speed Unit
exif:GPSSpeedGPS Speed
exif:GPSTrackRefGPS Track Reference
exif:GPSTrackGPS Track
exif:GPSImgDirectionRefGPS Image Direction Reference
exif:GPSImgDirectionGPS Image Direction
exif:GPSMapDatumGPS Map Datum
exif:GPSDestLatitudeGPS Destination Latitude
exif:GPSDestLongitudeGPS Destination Longitude
exif:GPSDestBearingRefGPS
Destination Bearing Reference

exif:GPSDestBearingGPS Destination Bearing
exif:GPSDestDistanceRefGPS Destination Distance Unit
exif:GPSDestDistanceGPS Destination Distance
exif:GPSProcessingMethodGPS Processing MethodVersion 2.2 or later
exif:GPSAreaInformationGPS Area Information
exif:GPSDifferentialGPS Differential
exif:GPSHPositioningErrorGPS Horizontal PositioningError

Exif
Namespace URIhttp://ns.adobe.com/exif/1.0/
Property Editable Notes
exif:ExposureTime
exif:FNumber
exif:ExposureProgram
exif:SpectralSensitivity

exif:ISOSpeedRatings
exif:OECF
(Optoelectric Conversion Factor)


exif:ExifVersionCannot change to previous version
exif:DateTimeOriginal
exif:DateTimeDigitizedUse xmp:CreateDate.
Cannot add this property.
exif:
ComponentsConfiguration


exif:
CompressedBitsPerPixel

exif:ShutterSpeedValue
exif:ApertureValue
exif:BrightnessValue
exif:ExposureBiasValue
exif:MaxApertureValue
exif:SubjectDistance
exif:MeteringMode
exif:LightSource
exif:Flash

exif:Function

exif:Fired

exif:Mode

exif:RedEyeMode

exif:Return

exif:FocalLength
exif:SubjectArea

exif:UserComment
exif:FlashpixVersion

exif:ColorSpace
exif:PixelXDimension
exif:PixelYDimension
exif:RelatedSoundFile

exif:FlashEnergy
exif:
SpatialFrequencyRespones


exif:FocalPlaneXResolution
exif:FocalPlaneYResolution
exif:
FocalPlaneResolutionUnit

exif:SubjectLocation

exif:ExposureIndex
exif:SensingMethod
exif:FileSource
exif:SceneType
exif:CFAPattern

exif:CustomRendered
exif:ExposureMode
exif:WhiteBalance
exif:DigitalZoomRatio
exif:
FocalLengthIn35mmFilm

exif:SceneCaptureType
exif:GainControl
exif:Contrast
exif:Saturation
exif:Sharpness
exif:
DeviceSettingDescription


exif:SubjectDistanceRange
exif:ImageUniqueID
exif:GPSVersionIDCannot change to previous version
exif:GPSLatitude
exif:GPSLongitude
exif:GPSAltitudeRef
exif:GPSAltitude
exif:GPSTimeStamp
exif:GPSSatellites
exif:GPSStatus
exif:GPSMeasureMode
exif:GPSDOP
(Degree of Precision)

exif:GPSSpeedRef
exif:GPSSpeed
exif:GPSTrackRef
exif:GPSTrack
exif:GPSImgDirectionRef
exif:GPSImgDirection
exif:GPSMapDatum
exif:GPSDestLatitude
exif:GPSDestLongitude
exif:GPSDestBearingRef
exif:GPSDestBearing
exif:GPSDestDistanceRef
exif:GPSDestDistance
exif:GPSProcessingMethodVersion 2.2 or later
exif:GPSAreaInformation
exif:GPSDifferential
exif:GPSHPositioningError

Exif EX
Namespace URIhttp://cipa.jp/exif/1.0/
Property Title Editable Notes
exifEX:BodySerialNumberBody Serial Number
exifEX:CameraOwnerNameCamera Owner Name
exifEX:GammaGamma
exifEX:InteroperabilityIndexInteroperability Index
exifEX:ISOSpeedISO Speed
exifEX:ISOSpeedLatitudeyyyISO Speed Latitude yyy
exifEX:ISOSpeedLatitudezzzISO Speed Latitude zzz
exifEX:LensSpecificationLens Specification
exifEX:LensMakeLens Make
exifEX:LensModelLens Model
exifEX:LensSerialNumberLens Serial Number
exifEX:PhotographicSensitivityPhotographic Sensitivity
exifEX:
RecommendedExposureIndex
Recommended Exposure Index
exifEX:SensitivityTypeSensitivity Type
exifEX:
StandardOutputSensitivity
Standard Output Sensitivity
exifEX:TemperatureTemperature (℃)Unknown: 0/4294967295
exifEX:HumidityHumidity (%)
exifEX:PressurePressure (hPa)
exifEX:WaterDepthWater Depth (meter)
exifEX:AccelerationAcceleration (mGal)
exifEX:CameraElevationAngleCamera Elevation Angle (°)
Exif EX
Namespace URIhttp://cipa.jp/exif/1.0/
Property Editable Notes
exifEX:BodySerialNumber
exifEX:CameraOwnerName
exifEX:Gamma
exifEX:InteroperabilityIndex
exifEX:ISOSpeed
exifEX:ISOSpeedLatitudeyyy
exifEX:ISOSpeedLatitudezzz
exifEX:LensSpecification
exifEX:LensMake
exifEX:LensModel
exifEX:LensSerialNumber
exifEX:PhotographicSensitivity
exifEX:
RecommendedExposureIndex

exifEX:SensitivityType
exifEX:
StandardOutputSensitivity

exifEX:TemperatureUnknown: 0/4294967295
exifEX:Humidity
exifEX:Pressure
exifEX:WaterDepth
exifEX:Acceleration
exifEX:CameraElevationAngle
IPTC Core
Namespace URIhttp://iptc.org/std/Iptc4xmpCore/1.0/xmlns/
Property Title Editable Notes
Iptc4xmpCore:CountryCodeISO Country Code
Iptc4xmpCore:
IntellectualGenre
Intellectual Genre
Iptc4xmpCore:SceneIPTC Scene
Iptc4xmpCore:SubjectCodeIPTC Subject Code
Iptc4xmpCore:LocationLocation
Iptc4xmpCore:
CreatorContactInfo
Creator's Contact Info

Iptc4xmpCore:CiAdrExtadrAddress

Iptc4xmpCore:CiAdrCtryCountry

Iptc4xmpCore:CiAdrPcodePostal Code

Iptc4xmpCore:CiAdrRegionProvince/State

Iptc4xmpCore:CiAdrCityCity

Iptc4xmpCore:CiTelWorkPhone Number

Iptc4xmpCore:CiEmailWorkEmail Address

Iptc4xmpCore:CiUrlWorkWeb URL

IPTC Core
Namespace URIhttp://iptc.org/std/Iptc4xmpCore/1.0/xmlns/
Property Editable Notes
Iptc4xmpCore:CountryCode
Iptc4xmpCore:
IntellectualGenre

Iptc4xmpCore:Scene
Iptc4xmpCore:SubjectCode
Iptc4xmpCore:Location
Iptc4xmpCore:
CreatorContactInfo

Iptc4xmpCore:CiAdrExtadr

Iptc4xmpCore:CiAdrCtry

Iptc4xmpCore:CiAdrPcode

Iptc4xmpCore:CiAdrRegion

Iptc4xmpCore:CiAdrCity

Iptc4xmpCore:CiTelWork

Iptc4xmpCore:CiEmailWork

Iptc4xmpCore:CiUrlWork
